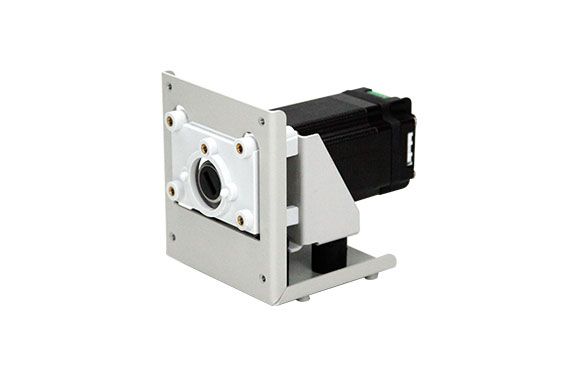

T100-SC02-01 Präzise Schlauchpumpe mit integriertem Treiber RS485 100 U/min
- Geschwindigkeit: 0-100 U/min
- Auflösung: 0,1 U/min
- Steuerung: RS485
ca. 2-3 Wochen
Nur noch %1 verfügbar
Artikelnr.
T100-SC02-01
$ 168,00
| Parameters | T100-SC02-01 |
| Motor type | Stepper motor |
| Control circuit board | Yes |
| Max. flow rate(Single Channel) | ≤500mL/min |
| Pumphead model | No (to be ordered separately) |
| Pump speed | ≤100rpm |
| Control mode | RS485，Modbus RTU or Longer OEM protocol |
| Control feature | Pump speed，start/stop，direction，prime status，via RS485 |
| Dimensions(L x W x H) | 121x102x118(mm) |
| Installation method | Panel mount or soleplate mount |
| Power supply | DC24V/15W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
| Weight | 1.29kg |
